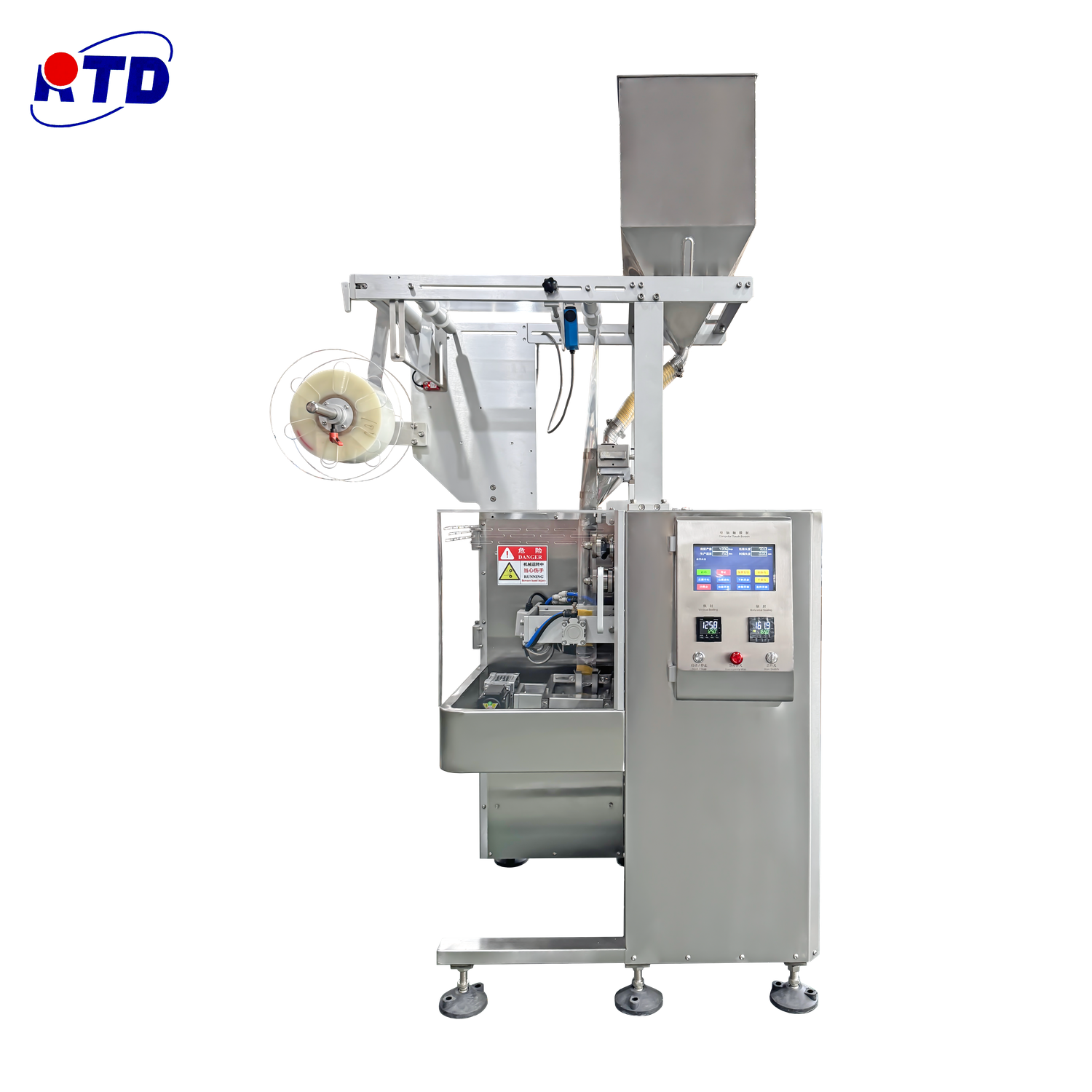

DXD-100H continuous high-speed packaging machine
1, suitable for all kinds of seasonings, granules, baits, beads and other small granular items measurement packaging.
2. It can automatically complete bag making, metering, blanking, sealing, slitting and counting, and can be configured according to customer requirements to print batch numbers and other functions.
3. Touch screen operation, PLC control, servo motor control bag length, fast speed, stable performance, convenient adjustment and accurate detection. Intelligent temperature controller
2. It can automatically complete bag making, metering, blanking, sealing, slitting and counting, and can be configured according to customer requirements to print batch numbers and other functions.
3. Touch screen operation, PLC control, servo motor control bag length, fast speed, stable performance, convenient adjustment and accurate detection. Intelligent temperature controller
| Product Model | DXD-100H continuous high-speed packaging machine |
| Measurement range | 1-60g specific gram weight needs consultation |
| bag size |
length (L ) : 30 - 180mm, width (W ) : 20 - 100mm |
| Packing speed | 60-180 bags / min (depending on material characteristics) |
| external dimensions | 1250*1920*850mm |
| Overall weight | 245kg |
| power | AC220V / 50 - 60Hz / 2.35kw |
| air source | ≥ 0.6Mpa |
