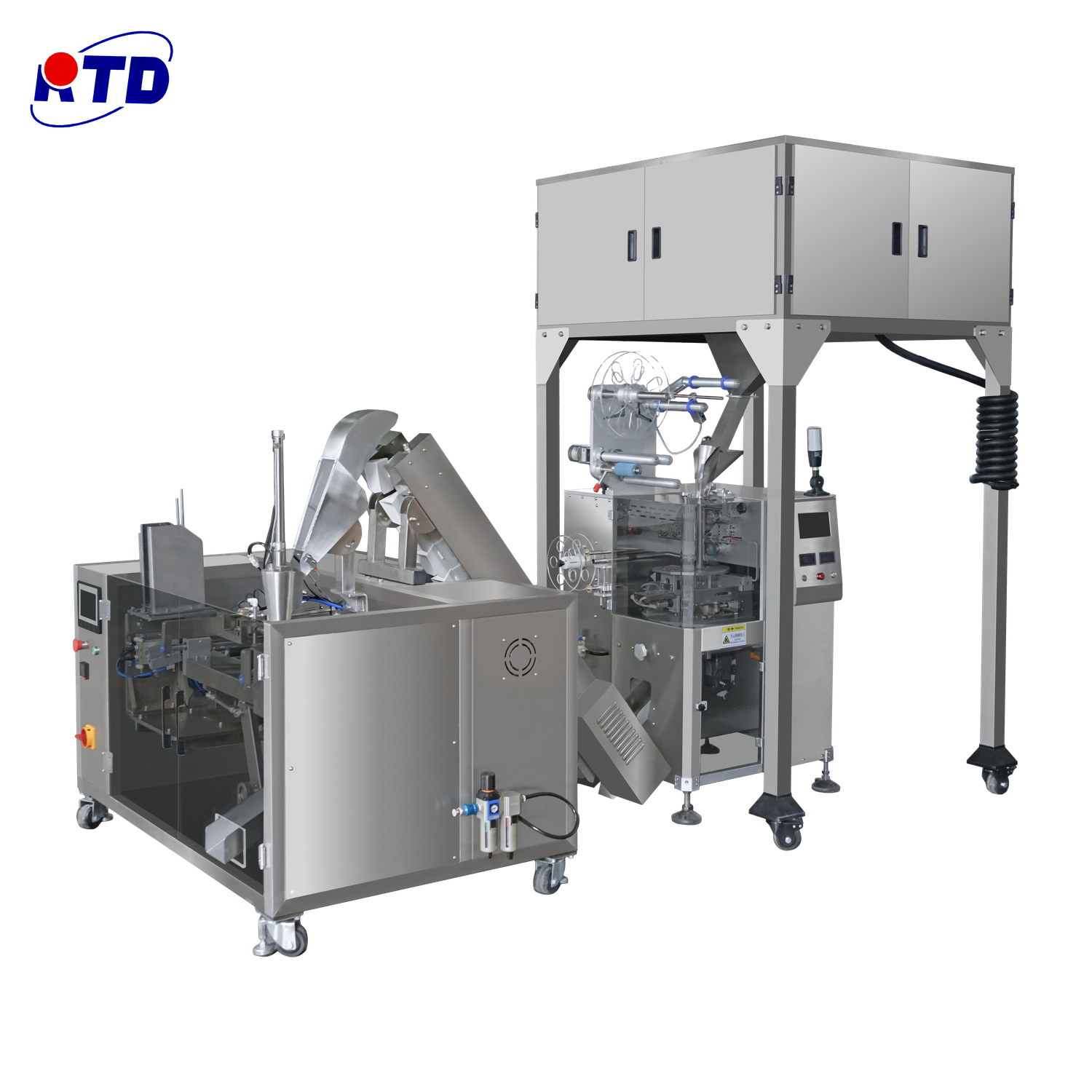

DXDT-10-6S DXDA-100B nylon triangle inner bag outer bag feeding machine

1, suitable for green tea, black tea, scented tea, coffee, Chinese tea, health tea, Chinese medicine tea, granules and other internal and external bags disposable packaging.
2. The inner bag is flat bag packaging, triangular three-dimensional packaging and other forms. The outer bag is packed in a bag type, with good sealing effect and beautiful bag shape.
3. The whole machine can automatically complete the functions of blanking, metering, bag making, sealing, cutting, counting, finished product
Contact us

Product Details

Product Model DXDT-10-6S DXDA-100B nylon triangle inner bag outer bag feeding machine
Measurement range 1 - 10g
Outer bag size

length (L ) :75 - 130mm, width (W ) : 60 - 120mm

inner bag size length (L ) :45 - 90mm, width (W ) : 40 - 90mm
Packing speed 20-40 bags/min
external dimension 1480*2716*2159mm
Overall weight 800kg
power AC220V / 50-60Hz / 5kw
air source ≥ 0.6Mpa
