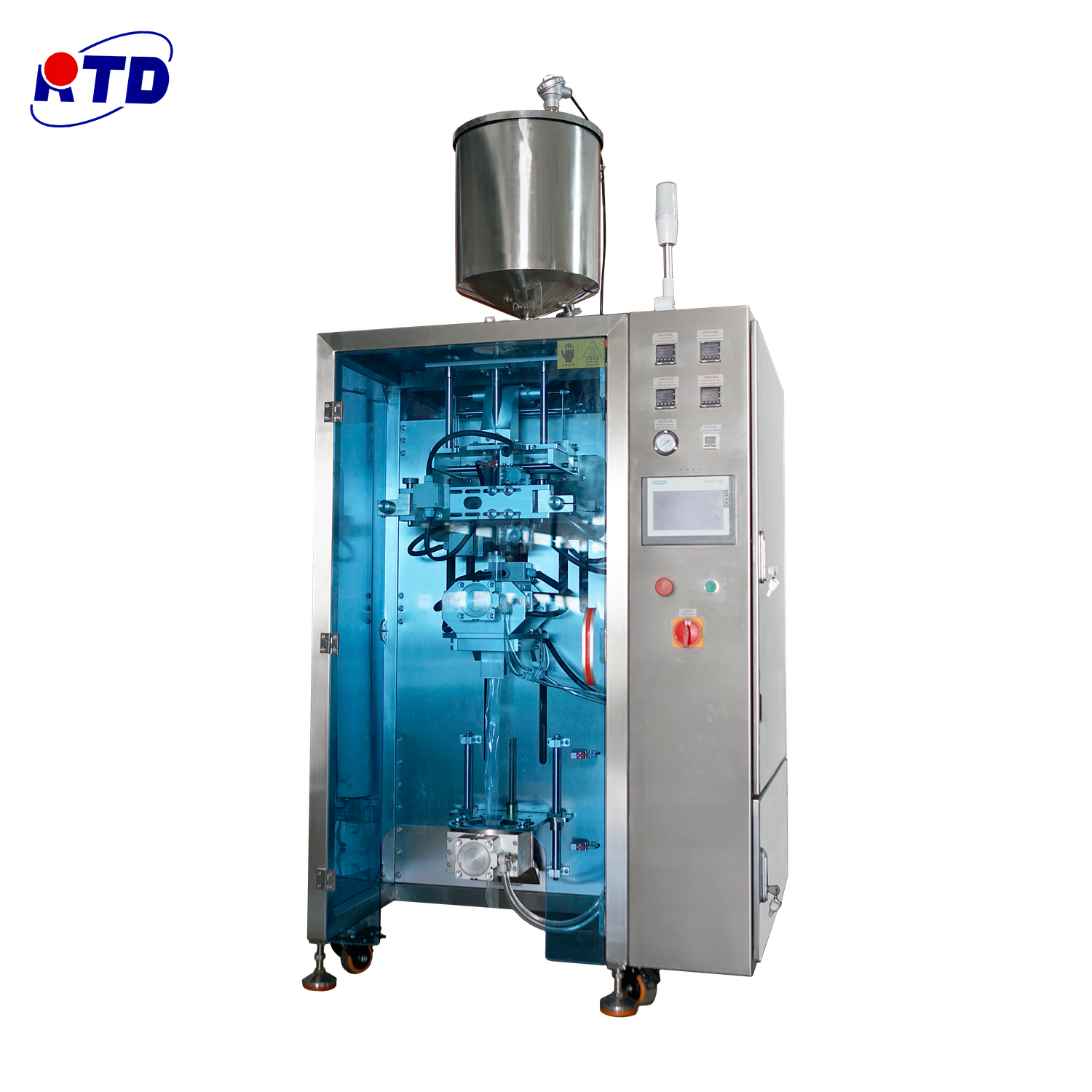

DXDL-99 Special-shaped Bag Packing Machine
1. It is suitable for measuring and packaging special-shaped bags of sauces and liquid items such as enzymes, fruit juices, mouthwash, toiletries, hair dyes, cosmetic samples in various industries.
2. It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and can be configured according to customer requirements to print batch numbers and other functions.
3, touch screen operation, PLC control, servo motor control bag length, stable performance, convenient adju
2. It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and can be configured according to customer requirements to print batch numbers and other functions.
3, touch screen operation, PLC control, servo motor control bag length, stable performance, convenient adju
| Product Model | DXDL-99 Special-shaped Bag Packing Machine |
| Measurement range | 1 - 20ml |
| bag size | length (L):30 - 180mm,width (W):20-80mm |
| Packing speed | 15 - 35bags / min |
| external dimension | 1120*1570*2120mm |
| Overall weight | 720kg |
| power | 220V / 50 - 60HZ / 3KW |
| air source | 0.6MPA |
