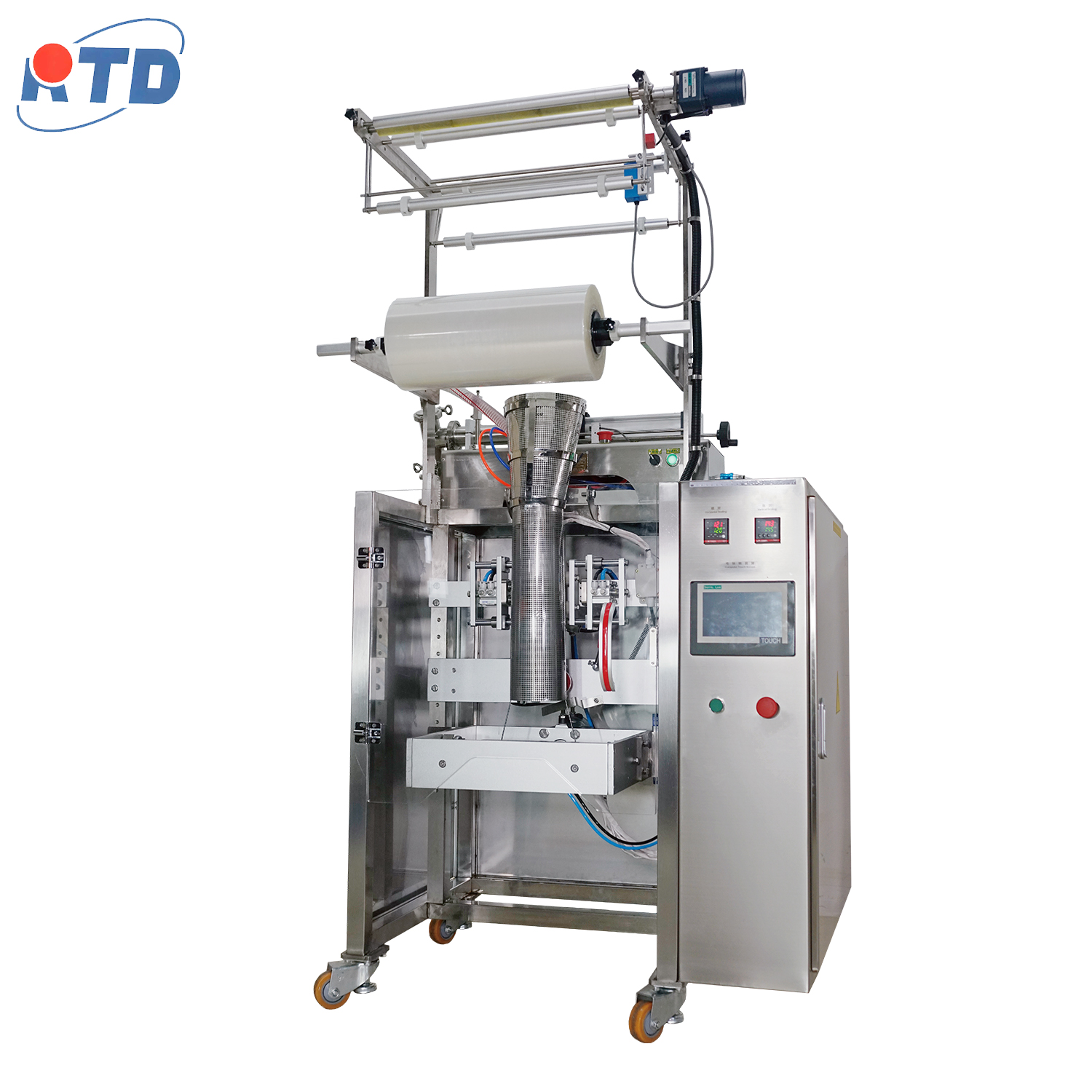

DXDL-80 large weight liquid packaging machine
1, suitable for food, medicine, chemical, cosmetics industry in the liquid, sauce and other items of large gram weight measurement packaging, such as:, chili oil, milk, sauce, ice bags, etc.
2. It can automatically complete bag making, metering, blanking, sealing, slitting and counting, and can be configured according to customer requirements to print batch numbers and other functions.
3, touch screen operation, PLC control, stepper motor control bag length, stable performance, convenient adjust
2. It can automatically complete bag making, metering, blanking, sealing, slitting and counting, and can be configured according to customer requirements to print batch numbers and other functions.
3, touch screen operation, PLC control, stepper motor control bag length, stable performance, convenient adjust
| Product Model | DXDL-80 large weight liquid packaging machine |
| Measurement range | 0.1 - 1kg |
| bag size | length (L):60 - 280mm, width (W):50 - 200mm |
| Packing speed | 10 - 30bags/min |
| external dimensions | 970*1100*1867mm |
| Overall weight | 300kg |
| power | AC220V / 50HZ / 2KW |
