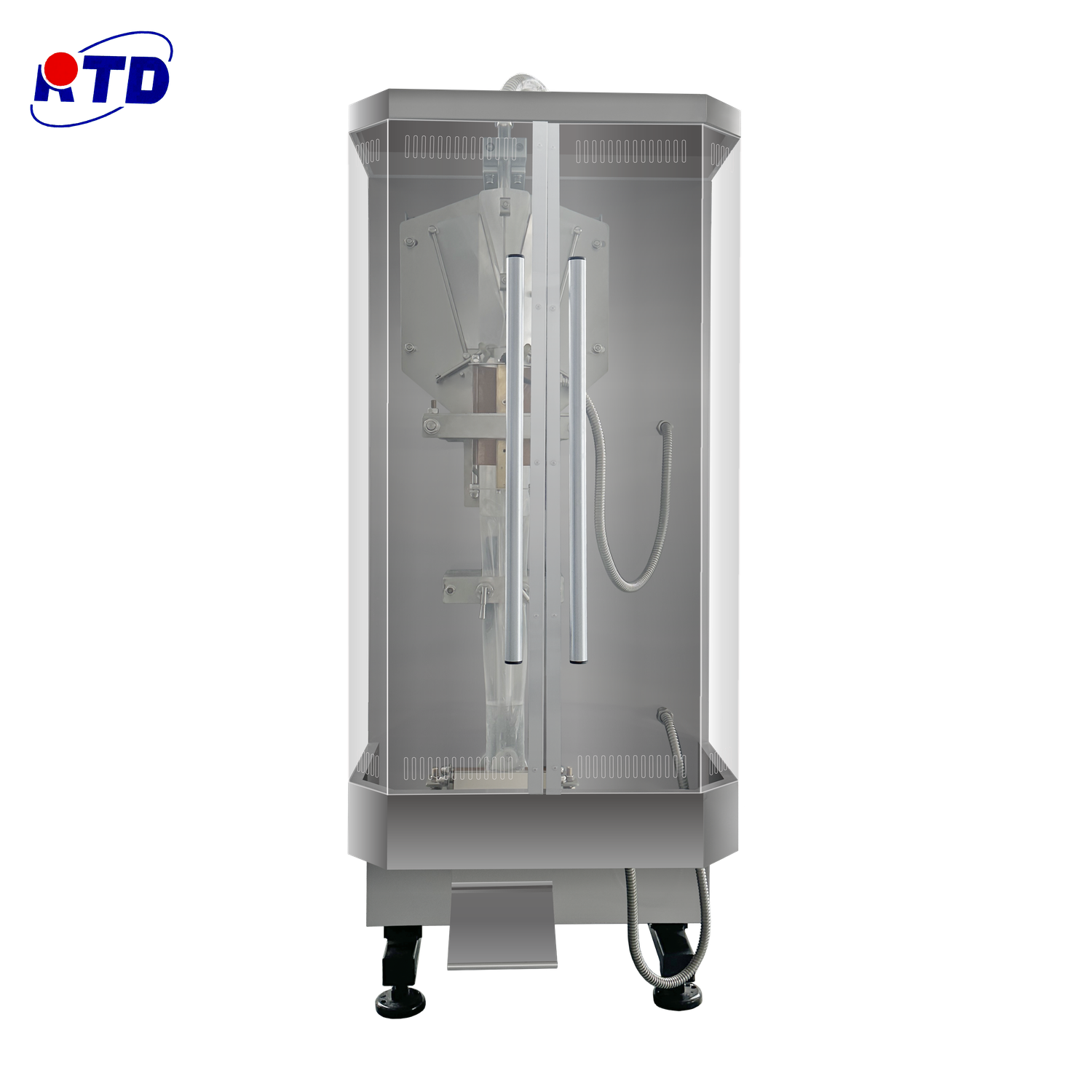

DXDL-155PE pure mechanical liquid packaging machine
1, suitable for food, medicine, chemical, cosmetics industry in the measurement of liquid items packaging.
2, a key start, can automatically complete the bag, metering, blanking, sealing, slitting and other functions.
3. The bag length is controlled by the screw, with stable performance and convenient adjustment. Intelligent temperature controller, PID regulation, to ensure that the temperature error range control within 1 ℃.
4. Packaging material: PE film
2, a key start, can automatically complete the bag, metering, blanking, sealing, slitting and other functions.
3. The bag length is controlled by the screw, with stable performance and convenient adjustment. Intelligent temperature controller, PID regulation, to ensure that the temperature error range control within 1 ℃.
4. Packaging material: PE film
| Product Model | DXDL-155PE pure mechanical liquid packaging machine |
| Measurement range | 100 - 500 ml (stepless adjustable) (measured according to bag size) |
| bag size | length (L ) : 15-155mm, width (W):85-150mm |
| Packing speed | 25 - 32 bags/min |
| external dimensions | 1000*860*1810mm |
| Overall weight | 300kg (specific in kind shall prevail) |
| power | 220V / 50Hz / 1.6kw |
