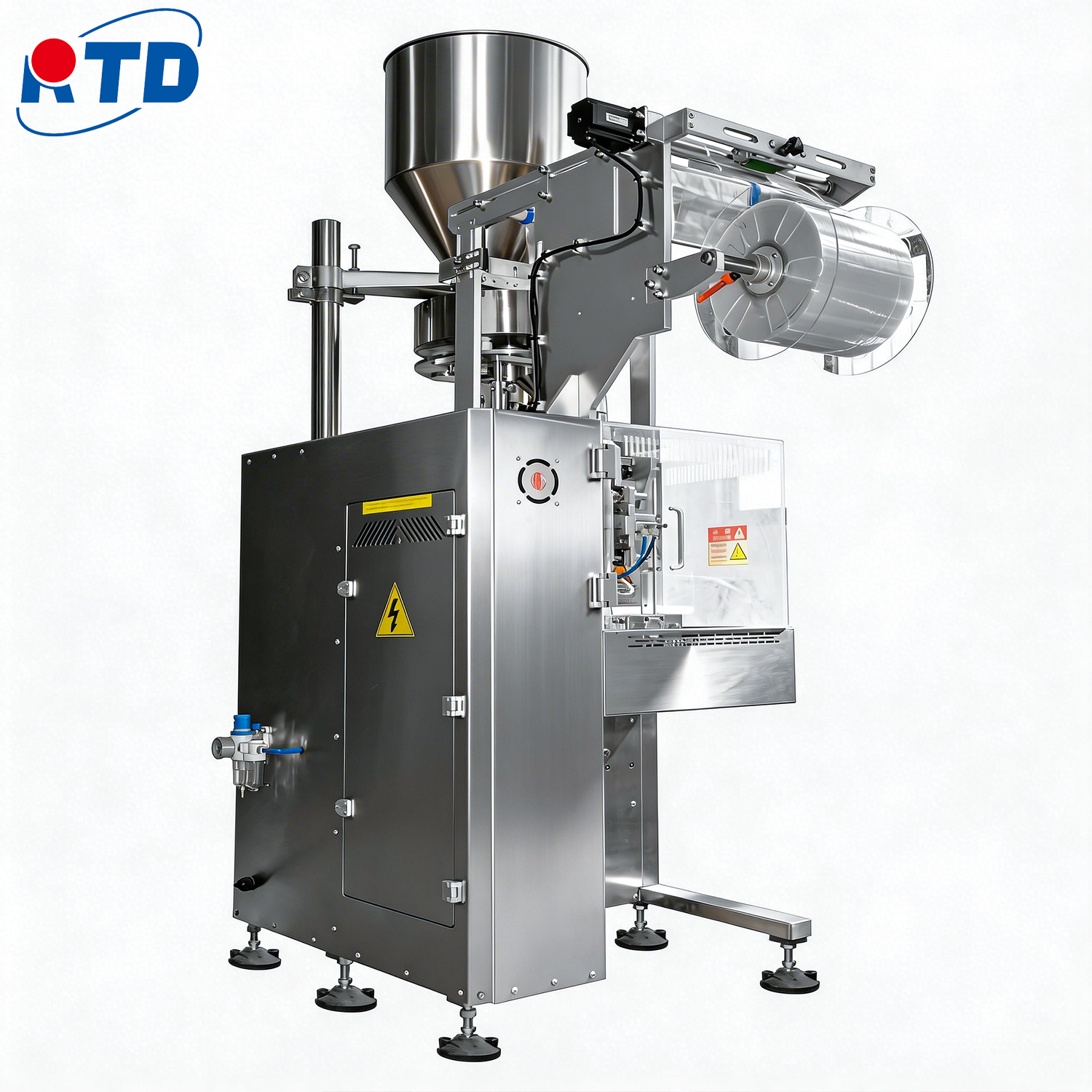

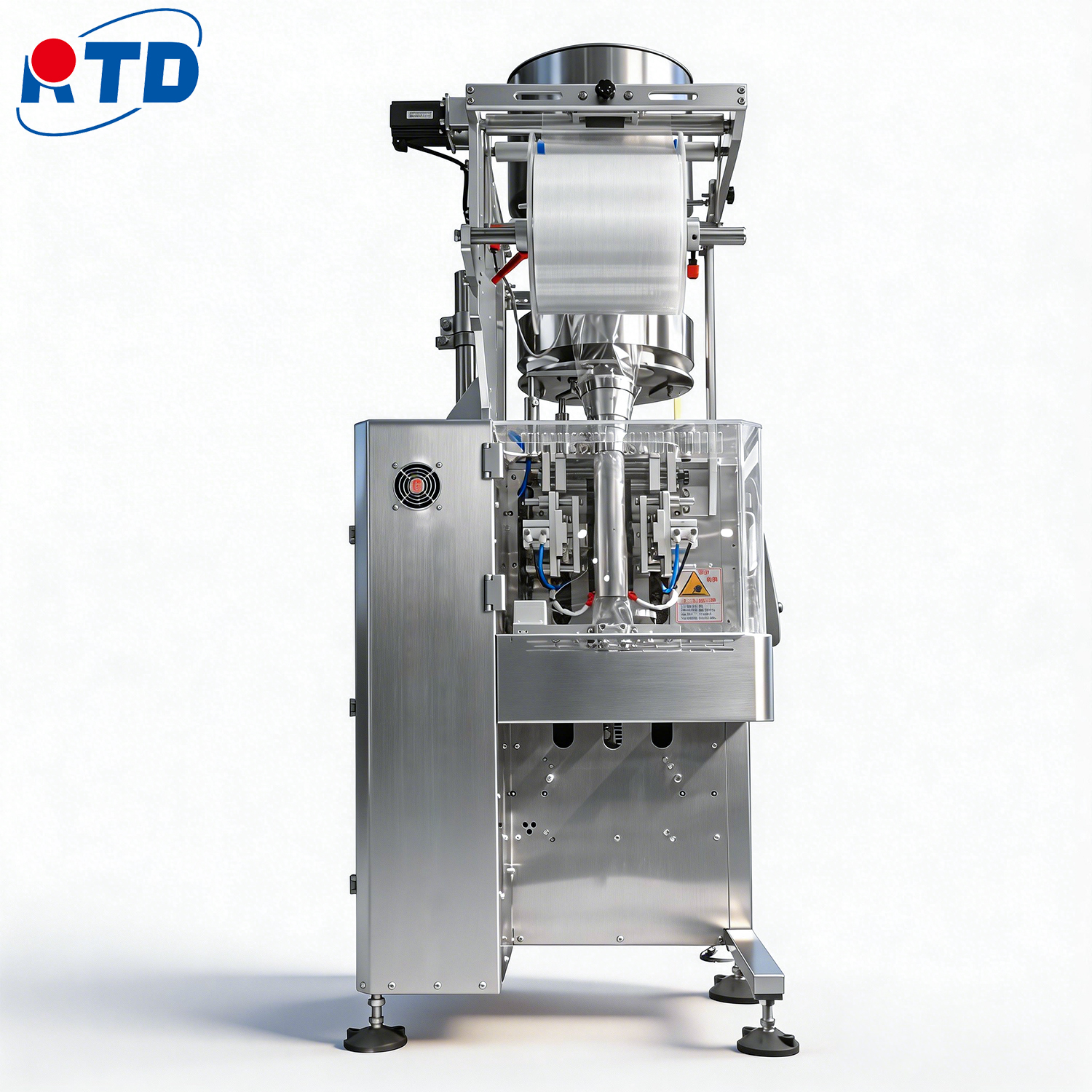

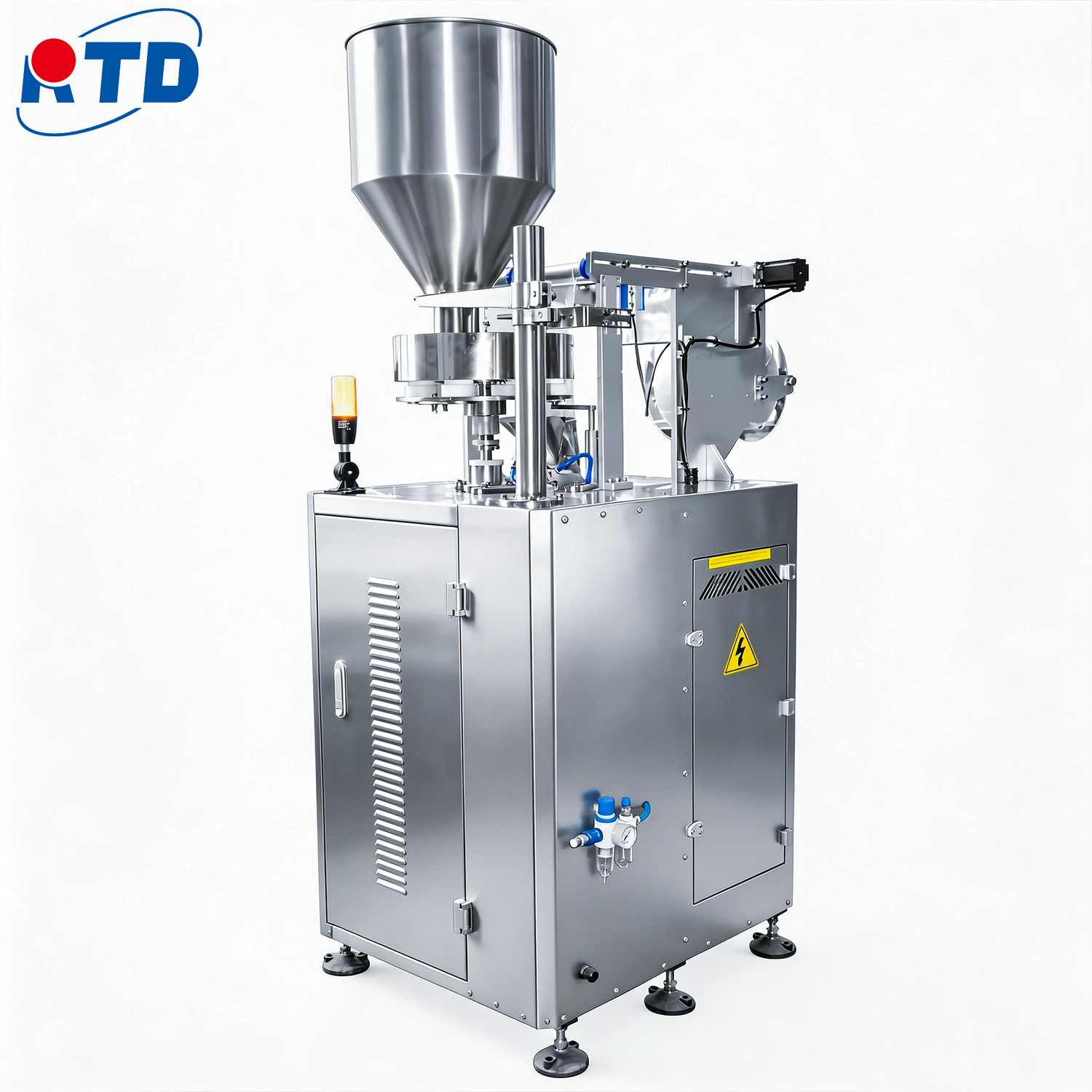

DXDK-65 high speed granule packing machine
Suitable for food, medicine, chemical industry, cosmetics industry, powder, liquid, sauce and other items of the measurement and packaging.
It can automatically complete bag making, metering, blanking, sealing, cutting and counting, and can be configured according to customer requirements to print batch numbers and other functions.

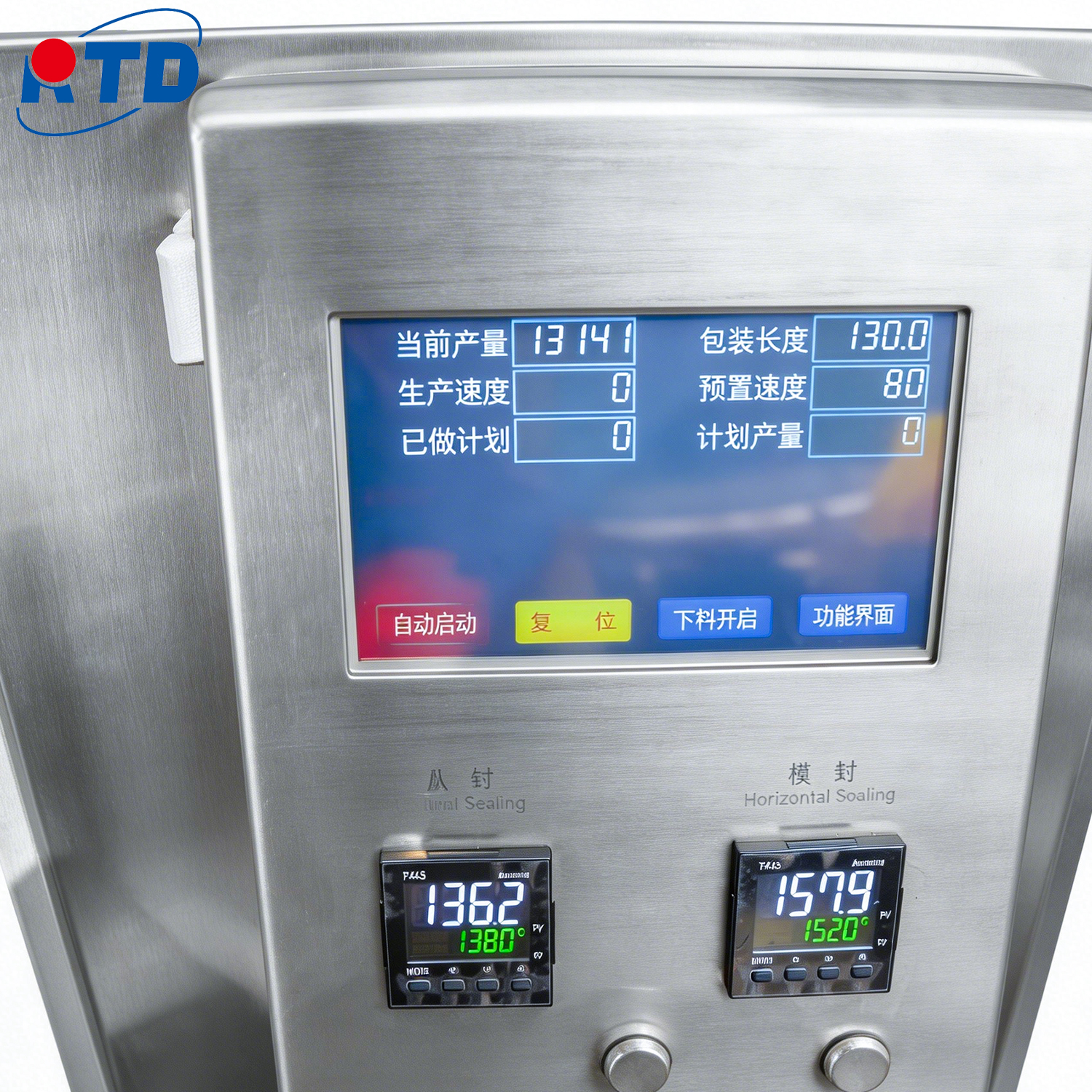

Touch screen operation, PLC control, servo motor control bag length, packaging speed, stable performance, convenient adjustment, accurate detection. Intelligent tempe
It can automatically complete bag making, metering, blanking, sealing, cutting and counting, and can be configured according to customer requirements to print batch numbers and other functions.
Touch screen operation, PLC control, servo motor control bag length, packaging speed, stable performance, convenient adjustment, accurate detection. Intelligent tempe
| Model | DXDK-65 high speed granule packing machine |
| Measurement range (g) | 1-100g |
| bag size (mm) | length: 30-180 width: 20-100 |
| Packing speed (bags/min) | 80-130 |
| Dimensions (mm) | 790(L)X1050(W)X1950(H) |
| Overall weight (kg) | 245 |
| power | AC220V/50-60Hz/2.35kw |
| air source | ≥ 0.6Mpa |
| sealing method | Three-side seal, four-side seal |
| Purchase equipment | coding machine/rear shock/lower cutter/package device |
| Packaging Materials |
polypropylene/polyethylene, aluminum foil/polyethylene, polyester/aluminized/polyethylene, reinforced polyethylene, paper/polyethylene, etc |
